By Joko Widodo
In January, as a severe winter storm approached Tulsa, Oklahoma, a residential heating failure highlighted the critical nature of home infrastructure and the evolving complexities of the HVAC (Heating, Ventilation, and Air Conditioning) industry. With temperatures forecast to drop into the single digits and a significant snowfall imminent, the failure of a 25-year-old furnace forced an immediate decision between costly repairs and a total system overhaul. This incident serves as a primary case study for understanding the mechanical, economic, and regulatory landscape of modern residential climate control.
The Tulsa Winter Freeze: A Chronology of System Failure
The incident began 24 hours prior to a major meteorological event in the Midwest. The homeowner’s furnace, which had exceeded the industry-standard lifespan of 15 to 20 years, ceased operation during the critical "pre-freeze" window.
The timeline of the event unfolded as follows:
- Initial Failure: The furnace stopped responding to thermostat calls as outdoor temperatures began to plummet.
- Professional Diagnosis: An HVAC technician identified a "cooked" blower motor. Due to the unit’s age (manufactured circa 1999), replacement parts were not locally stocked.
- Logistical Barriers: Supply chain estimates suggested a one-week delay for parts delivery—a timeline that would leave the residence without heat during sub-zero temperatures.
- The Replacement Decision: Faced with the obsolescence of the unit’s R-22 refrigerant (a discontinued substance) and persistent minor leaks, the homeowner authorized a full system replacement.
- Installation: A new unit was installed within the same business day, restoring heat just as the snow began to accumulate.
This sequence of events is increasingly common as a generation of HVAC systems installed in the late 1990s and early 2000s reaches the end of its functional life.
The Mechanics of Residential Heating: The Gas-Fired Furnace
Modern American homes predominantly rely on central gas-fired heating systems. Understanding this system requires viewing it as a closed-loop process that cycles indoor air through a heating medium.
The Combustion and Exchange Process
When a thermostat registers a temperature below the set point, it triggers the furnace’s ignition sequence. Natural gas flows into the burner assembly, where it is ignited. This flame does not heat the air directly; instead, it heats the heat exchanger—a series of curved metal tubes.
The heat exchanger serves two vital functions:
- Containment: It keeps toxic combustion byproducts, including carbon monoxide (CO), separate from the home’s breathable air. These gases are vented safely outside through a flue.
- Transfer: As the metal walls of the exchanger reach high temperatures, the system’s blower motor activates. This fan pulls "return air" from the home’s living spaces, pushes it over the exterior of the hot heat exchanger tubes, and distributes the now-warmed air through the supply ducts.
Critical Safety Components
Two primary safety devices govern this process. The flame sensor is a small metallic rod that detects the presence of a flame. If it fails to detect heat within seconds of gas flow, it shuts down the system to prevent a dangerous buildup of unburned gas. The limit switch monitors the internal temperature of the furnace cabinet. If airflow is restricted (often by a dirty filter) and the unit overheats, the limit switch terminates the heating cycle to prevent fire or heat exchanger cracking.

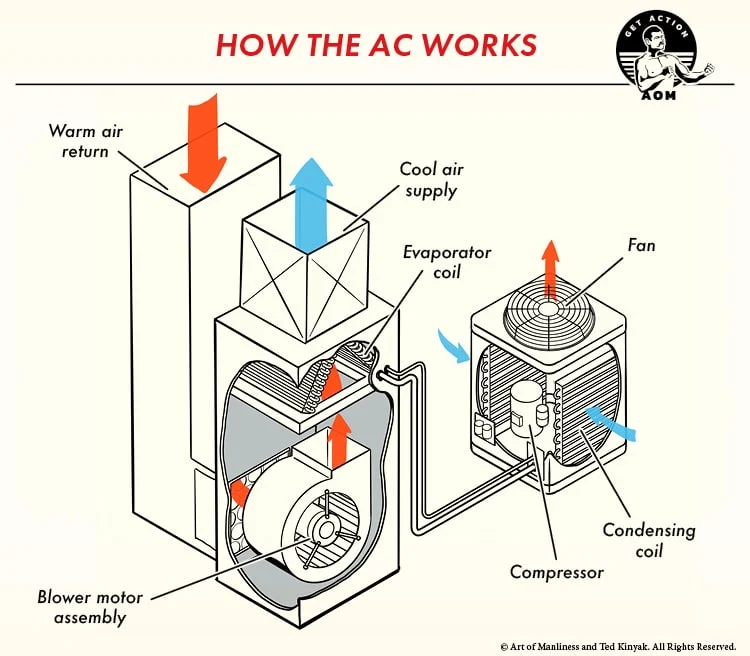

The Mechanics of Residential Cooling: Heat Extraction and Phase Change
Contrary to popular belief, air conditioning systems do not "create" cold; they remove heat. This is achieved through the refrigeration cycle, which relies on the physical properties of a refrigerant as it transitions between liquid and gas states.
The Outdoor Condensing Unit
The cooling process begins at the outdoor unit, which houses the compressor and the condenser coil. The compressor pressurizes the refrigerant, turning it into a hot, high-pressure gas. A large fan pulls outdoor air across the condenser coils, dissipating the heat collected from inside the home into the environment. As the refrigerant cools, it condenses into a high-pressure liquid.
The Indoor Evaporator Coil
This liquid refrigerant travels to the indoor evaporator coil, typically located above the furnace. As the refrigerant enters the coil, it passes through an expansion valve, causing a drop in pressure and a subsequent drop in temperature. As the furnace blower pushes warm indoor air across these cold coils, the refrigerant absorbs the heat from the air.
Dehumidification and Drainage
A secondary benefit of the cooling process is dehumidification. As warm, moist air hits the cold evaporator coils, water vapor condenses into liquid. This moisture collects in a drain pan and is moved outside via a PVC condensate line. A common point of failure is a clogged condensate line; many modern systems include a "float switch" that automatically cuts power to the unit if the drain line backs up, preventing water damage to the home.
The Economic Reality: Rising Costs and Efficiency Standards
One of the most significant takeaways from the Tulsa incident was the "astronomical" increase in HVAC replacement costs. According to industry data, the cost of residential HVAC installations has risen significantly over the last decade. Several factors contribute to this trend.
Regulatory Shifts and Refrigerant Phase-Outs
The transition from R-22 (Freon) to R-410A, and now toward newer A2L refrigerants (such as R-454B and R-32), is driven by environmental regulations aimed at reducing ozone depletion and global warming potential. These transitions require more sophisticated equipment and specialized training for technicians, which increases consumer costs.
Efficiency Ratings (AFUE and SEER2)
Efficiency is measured by two primary metrics:
- AFUE (Annual Fuel Utilization Efficiency): This measures how efficiently a furnace converts gas into heat. Older units often operated at 80% AFUE, meaning 20% of the energy was lost through the exhaust. Modern high-efficiency units can reach 96% to 98% AFUE by utilizing a secondary heat exchanger to capture latent heat.
- SEER2 (Seasonal Energy Efficiency Ratio): This measures the cooling efficiency of AC units. Higher SEER2 ratings indicate lower electricity consumption but higher upfront equipment costs.
Technological Advancements
Modern units often feature variable-speed blower motors and multi-stage burners. Unlike traditional "on/off" systems, these components can operate at partial capacity, providing more consistent temperatures, better humidity control, and quieter operation. While these "wizbang features" increase the initial purchase price, they are designed to lower long-term utility expenditures.
Maintenance Protocols for System Longevity
To mitigate the "phantom expenses" of homeownership and prevent emergency failures during extreme weather, industry experts recommend a rigorous maintenance schedule.
- Filter Management: Air filters should be inspected monthly and replaced at least every 90 days. The filter’s primary purpose is to protect the internal components (the evaporator coil and heat exchanger) from dust buildup, which can lead to system failure.
- Clearance of Vents: Homeowners should ensure that return and supply vents are not obstructed by furniture or drapery. Obstructed vents increase "static pressure," which puts undue stress on the blower motor and can lead to premature burnout.
- Condenser Cleaning: Outdoor units should be gently hosed down annually to remove organic debris like cottonwood fuzz and grass clippings, which insulate the coils and prevent efficient heat transfer.
- Condensate Line Maintenance: Pouring a cup of white vinegar down the condensate drain line once per season can prevent the growth of algae and sludge that causes clogs and system shutdowns.
- Bi-Annual Professional Inspections: Technicians can identify "soft failures"—such as a degrading capacitor or a dirty flame sensor—before they result in a total system lockout during a peak weather event.
Broader Implications and Industry Outlook
The Tulsa case study illustrates a broader trend in the American housing market: the rising cost of essential infrastructure. As HVAC systems become more integrated with "smart home" technology and more strictly regulated by environmental standards, the barrier to entry for replacement grows.
Financial analysts suggest that homeowners should treat HVAC systems as a depreciating asset with a defined lifespan, budgeting for replacement well before the 20-year mark. The shift toward high-efficiency, variable-speed technology represents a move toward more sustainable energy consumption, but it requires a shift in consumer mindset regarding upfront investment versus long-term operational savings.
Ultimately, the transition from a "fix-it-when-it-breaks" mentality to a proactive maintenance and replacement strategy is essential for modern homeowners. Understanding the "loop" of the HVAC system—from the ignition of the burner to the evaporation of the refrigerant—empowers consumers to make informed decisions when faced with the high-stakes reality of a winter freeze or a summer heatwave.
